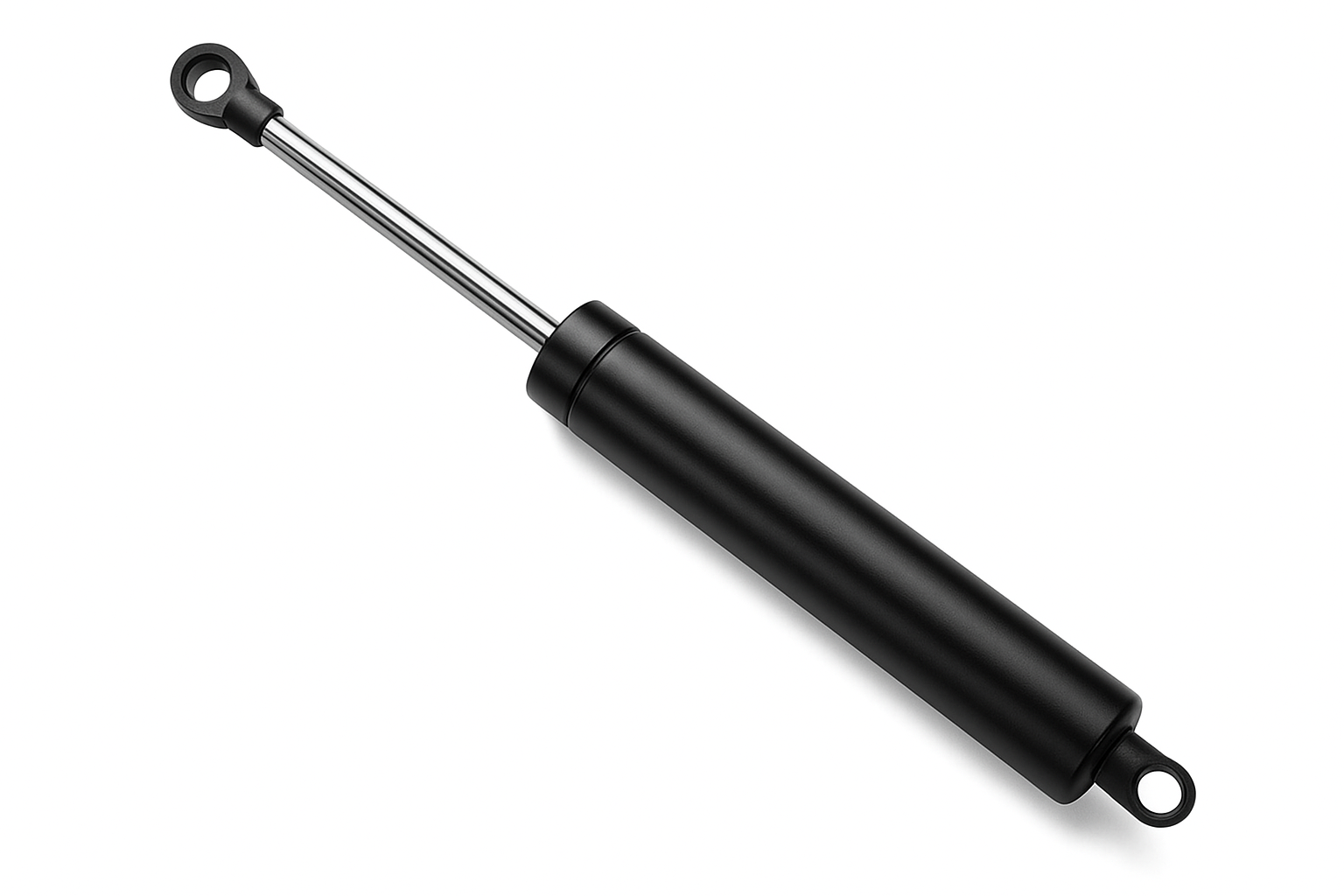

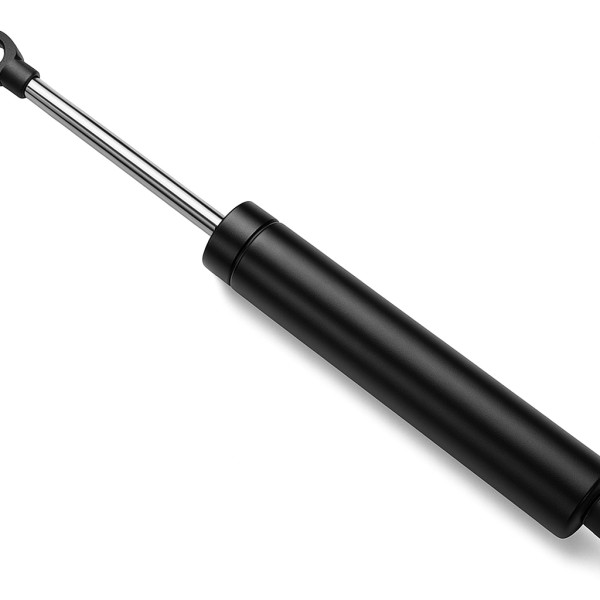

📏 Ø1 - Piston rod diameter (mm): 6.00
📏 Ø2 - Cylinder diameter (mm): 15.00
↕️ L1 - Stroke length (mm) (+/- 2 mm): 150.00
📐 L6 - Total length eye-to-eye (mm): 366.00
💪 F - Force (N): 300.00
⚖️ K - Force coefficient: 1.30
🔩 T - Eye thickness (mm): 3.00
🕳️ ØA - Mounting hole (mm): 6.10
Cylinder: Welded cold-formed tube EN 10305-3 ST37/S14
Piston rod: C35R
The cylinder is painted with semi-gloss black paint, and the piston rod has undergone a plasma nitriding treatment, which makes the surface highly wear-resistant and provides moderate corrosion protection. However, this treatment cannot replace a fully stainless steel gas spring.
Oil: The oil is a standard lubricating oil but is not approved for food contact.
Gas: Nitrogen (N₂) – Atmospheric air contains 78.09% nitrogen, which forms the basis for nitrogen production via the distillation of liquid air. Nitrogen is odorless, colorless, non-toxic, and non-flammable.
